TOP SPEED
28 MPH
MOTOR POWER
500W
PAYLOAD CAPACITY
300lbs
RANGE
60 Miles
PHONE APP
iOS, Android

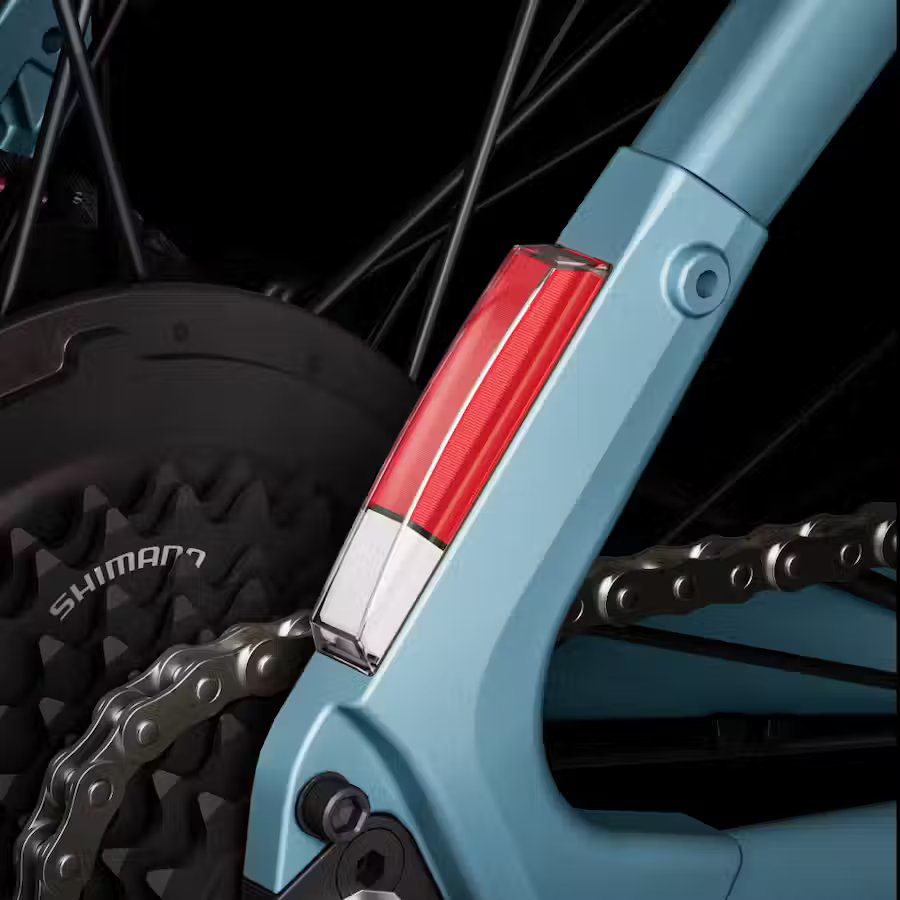

TURN SIGNALS
Integrated Lights
1,000+ bike shops.
Convenient, professional service
Safety Certified
In accordance with UL 2849
SIZE & FIT
Regular: 4’11” – 5’7″
Large: 5’7″ – 6’1″

Frame Size | Regular | Large |
---|---|---|
Top Tube Length | 617mm | 639mm |
Reach | 348mm | 363mm |
Head Tube Length | 195mm | 215mm |
Standover Height | 415mm | 445mm |
Wheelbase | 1086mm | 1108mm |
Min Saddle Height | 765mm | 805mm |
Max Saddle Height | 965mm | 995mm |
TECHNICAL SPECIFICATIONS
MODEL | Pace 500.3 Step-Through Ebike |
MOTOR | 500w, 48v |
THROTTLE | Throttle on demand |

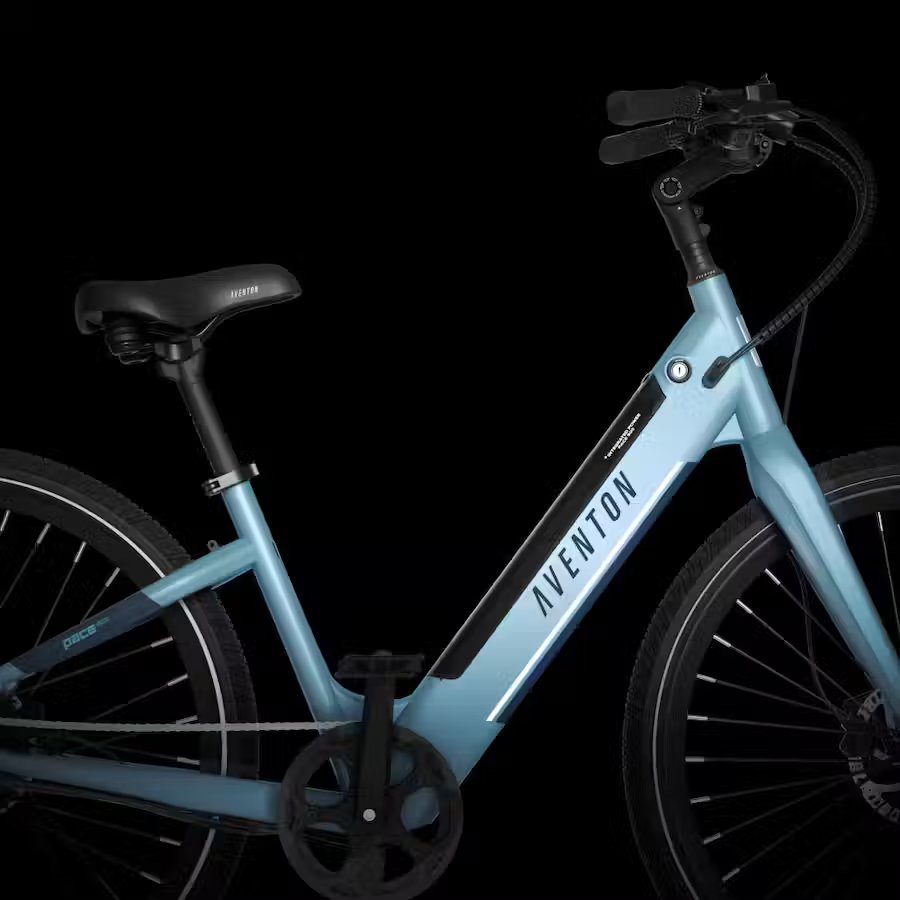

FRAME STYLE | Step-Through |

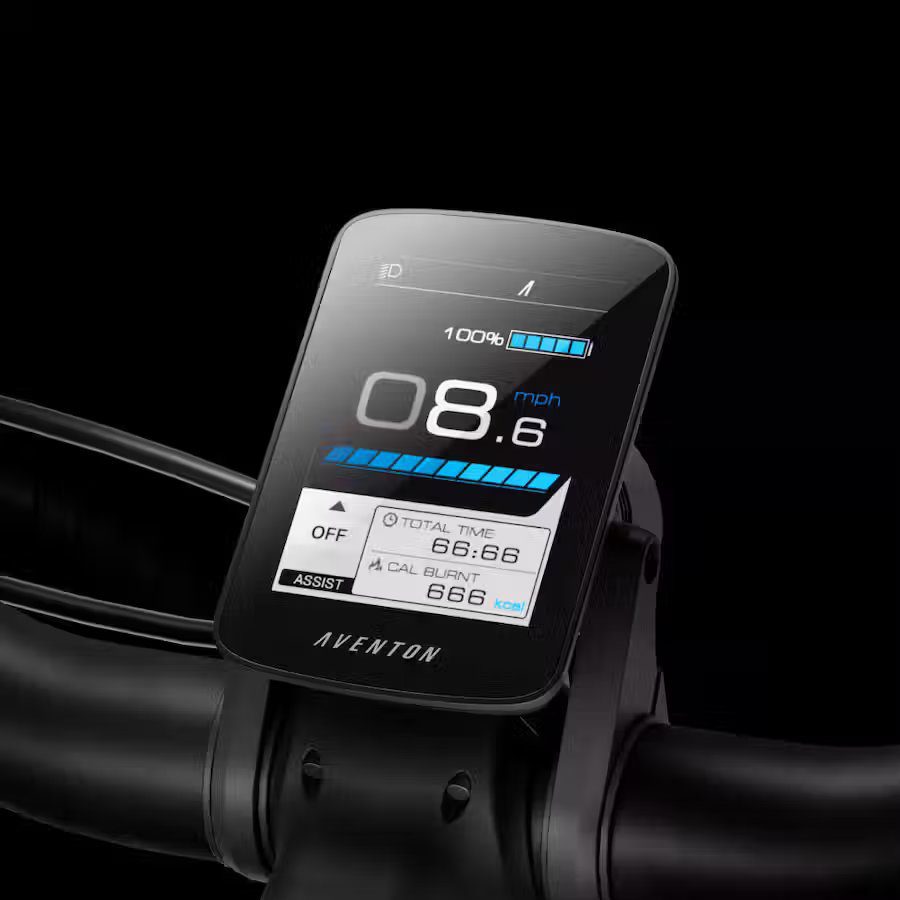

DISPLAY | LCD Smart "Easy Read" |
SPEED | 28 MPH |

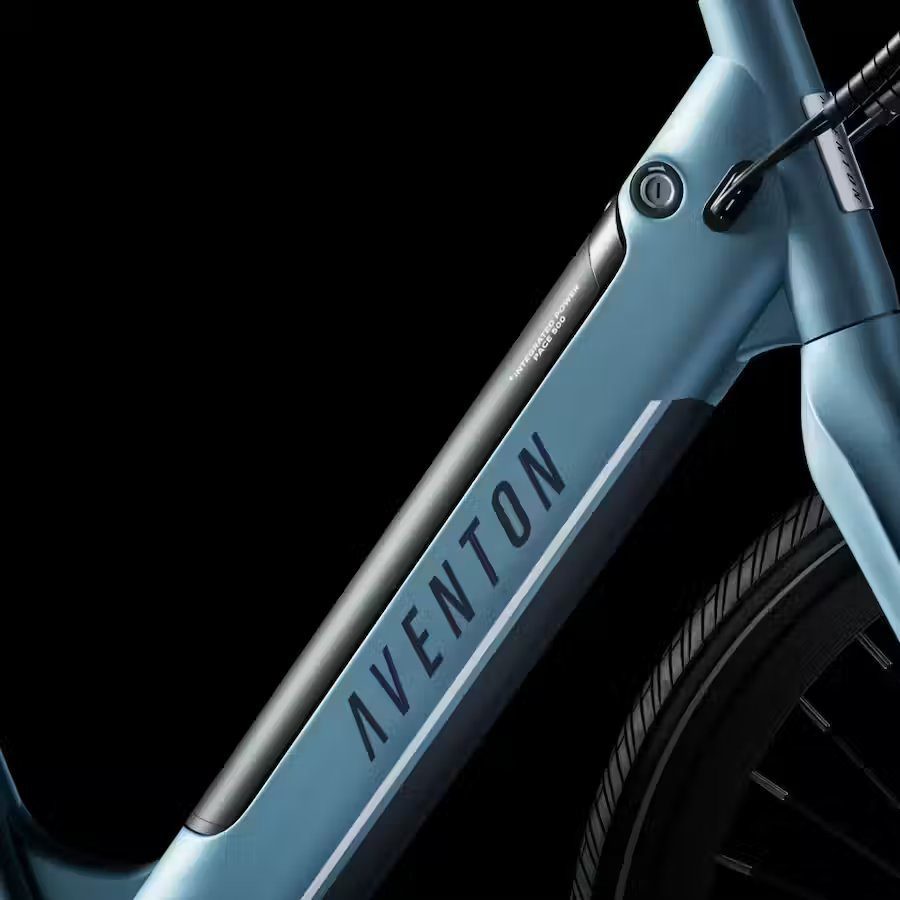

BATTERY | 48V, 12.8Ah (614Wh) |

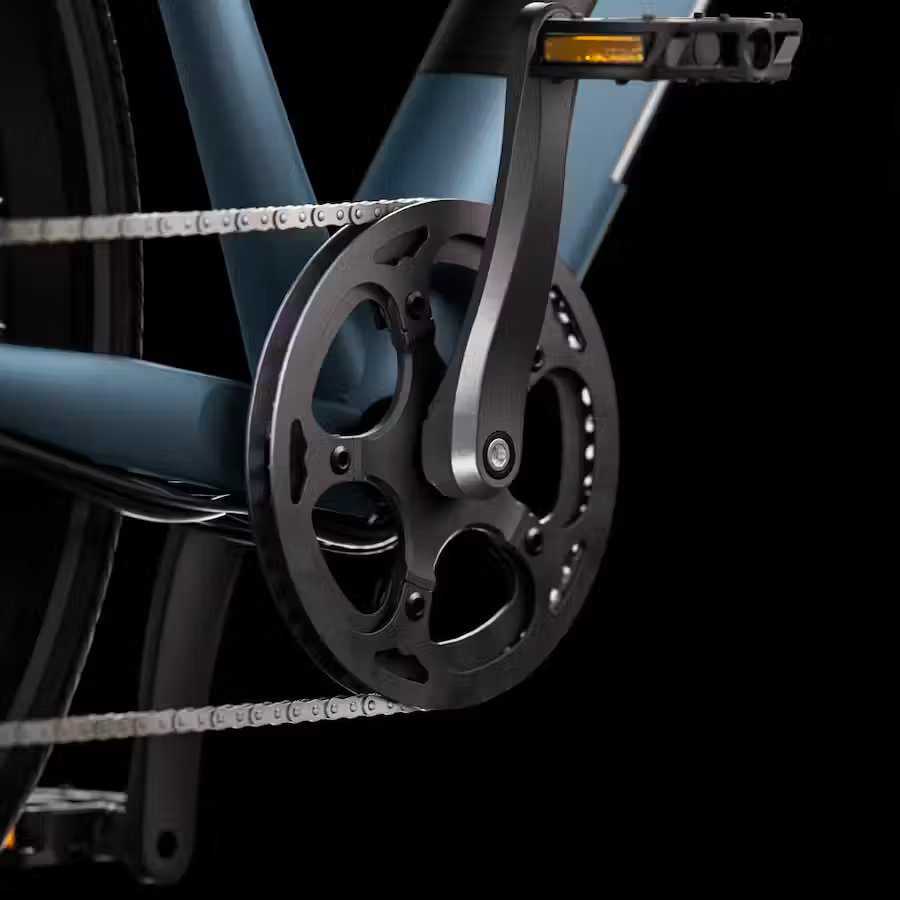

SENSORS | Torque Sensor |
BOTTOM BRACKET | Square Taper, Sealed, Torque Sensor |
PEDAL ASSIST | 4 Levels |
CHARGER | 48V, 3 Amp Fast Charger |
RANGE | Up to 60 miles |
FRAME | Single-Butted Aluminum Alloy |
WEIGHT | 52 lbs |
PEDALS | 9/16" Alloy Platform |
FORK | AE-E08 PACE V2 AL fork |
TOTAL WEIGHT LIMIT | 300 lbs |
KICKSTAND | Included, rear mount |
CRANKSET | 170mm w/ 48 T |
CASSETTE | 12-32T, 8 Speed |
REAR DERAILLEUR | Shimano 8 speed |
SHIFT LEVER | 8 Speed Trigger |
CHAIN | 122 Link, 8 Speed |
RIM | Double Wall Aluminum 36h Front & Rear |
TUBES | Butyl Rubber, Schrader Valve |
HUBS | Hubs: 36H Disc Nutted Front, Nutted Rear |

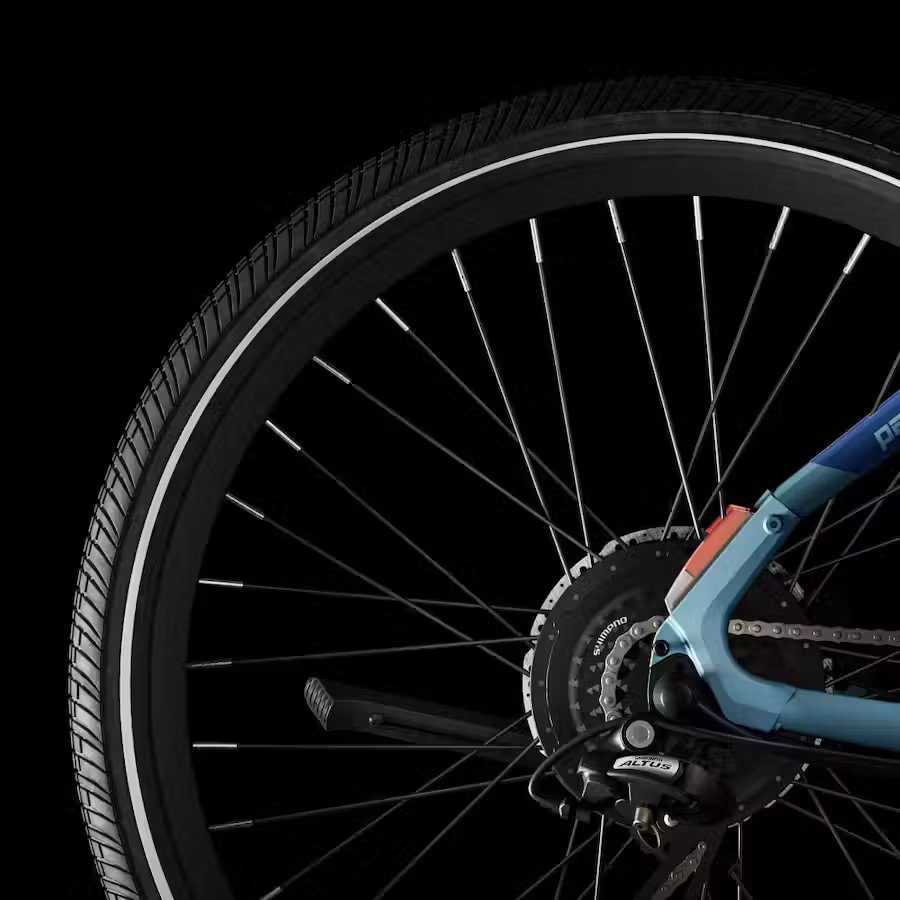

TIRES | 27.5" x 2.1" Puncture Resistant, Reflective Sidewalls |
SADDLE | Aventon Saddle |
SEATPOST | Forged Alloy, 30.9mm 2-Bolt Clamp |

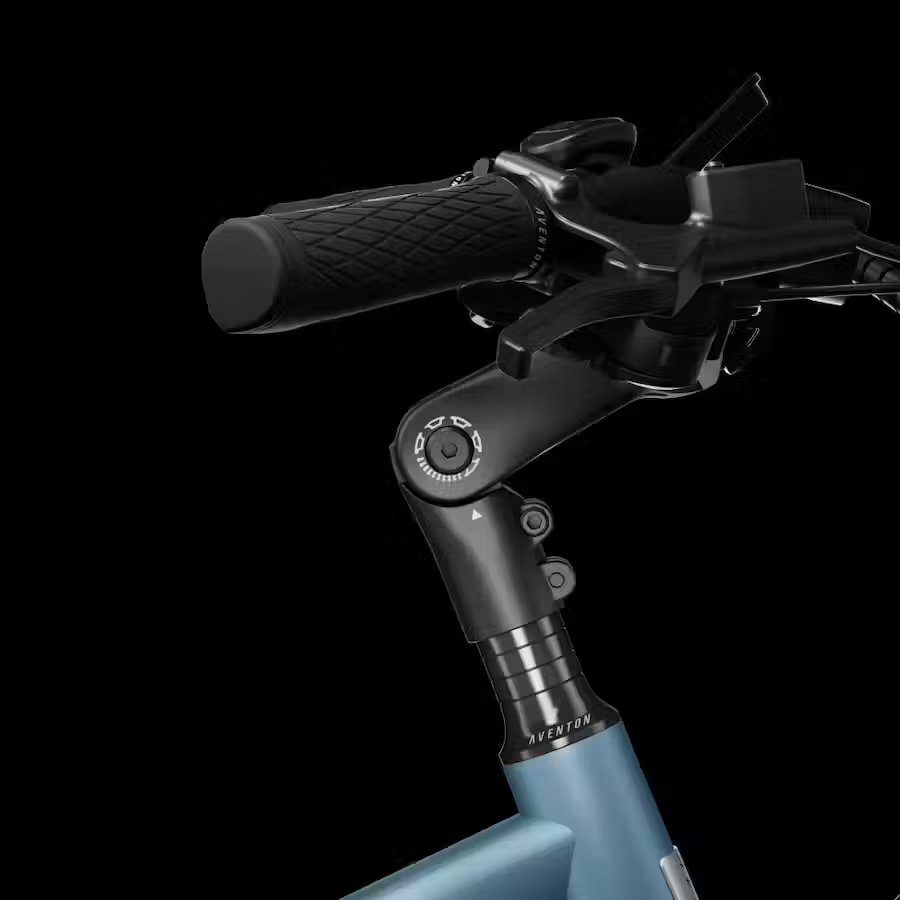

STEM | Threadless, 31.8mm, 90mm |
SEAT CLAMP | 34.9mm Quick Release |
HANDLEBARS | Aluminum 31.8mm, Sweptback |
HEADSET | Sealed Bearing Headset |
GRIPS | Bike Box 150cm x 27cm x 86cm |
DIMENSIONS | Ergonomic Comfort |
IDEAL USE | Cruising |
LIGHTS | Optional |
FOLDING | No |
REAR RACK | Optional |
FENDERS | Optional |
SUSPENSION | None |
RIDER HEIGHT | 4'11" - 6'1" |
BRAKES | Hydraulic |
Technical Overview
Third Party Reviews
Recommended for you
FEATURES
Pace 500.3 Step-Through Ebike
Pace 500.3 Step-Through is easy access to fun! Its intuitive torque sensor amplifies your efforts and puts you in control of the way you cruise. Find renewed energy then set the pace at your leisure by switching between the 4 new pedal assist levels: eco, tour, sport and turbo. Take the longer route with its powerful 500W motor’s top speed of 28 mph and up to 60 miles in range. The all-new turn signal functionality will keep you protected on the road by signaling to those behind you when you’re switching lanes and making moves. Ride comfortably with its cushioned saddle, swept-back handlebars and an upright riding position. Pace 500.3 Step-Through reinvigorates the way you get around. It’ll feel like riding a bicycle for the first time, every time.













*Aventon has the right without notice to the consumer to substitute components of at least equal quality for advertised Aventon ebike components in the event of the unavailability of such advertised components. More info
